Tech Tuesday: Bose Professional MSA12X
Achieving clear, intelligible sound isn’t just about turning up the volume, it’s about control. In spaces with reflective surfaces, high ceilings, or complex architecture, unmanaged sound can quickly become muddy and inconsistent.

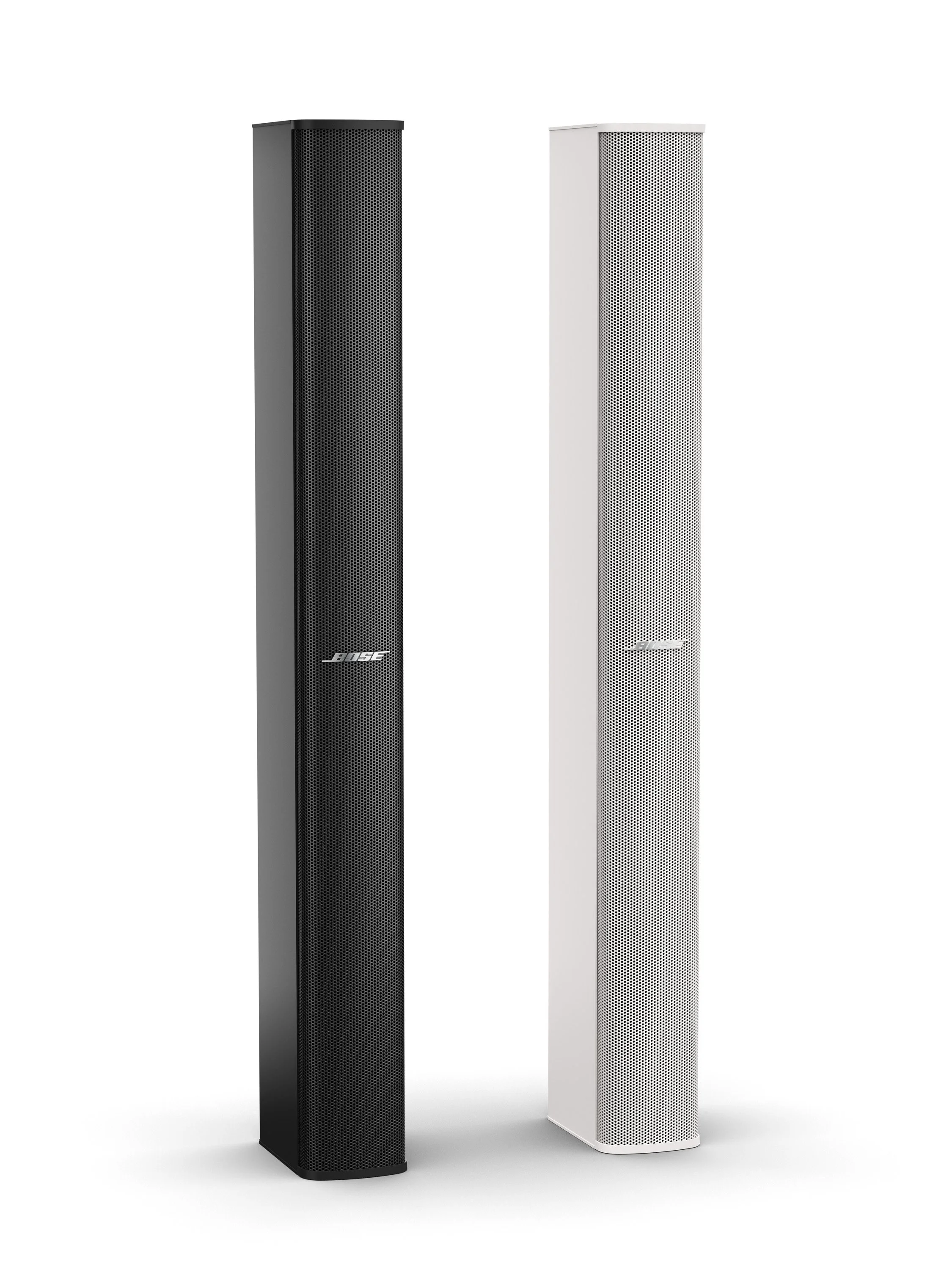

The Bose Professional MSA12X powered beam-steering array loudspeaker is engineered specifically to address these challenges, combining advanced DSP, modular hardware design, and networked audio capabilities into a highly adaptable solution for complex acoustic environments.
What Makes It Different
Precision Beam Steering, Not Just Coverage
At the core of the MSA12X is digitally controlled beam steering, which fundamentally changes how sound is delivered. Instead of relying on fixed dispersion or physical aiming, the loudspeaker uses 12 individually powered 2.25-inch drivers to shape and direct sound exactly where it’s needed.
The result is a focused vertical beam with wide 160° horizontal coverage, delivering consistent tonal balance across the listening area. Whether someone is seated front row or farther back, the experience remains even and intelligible.

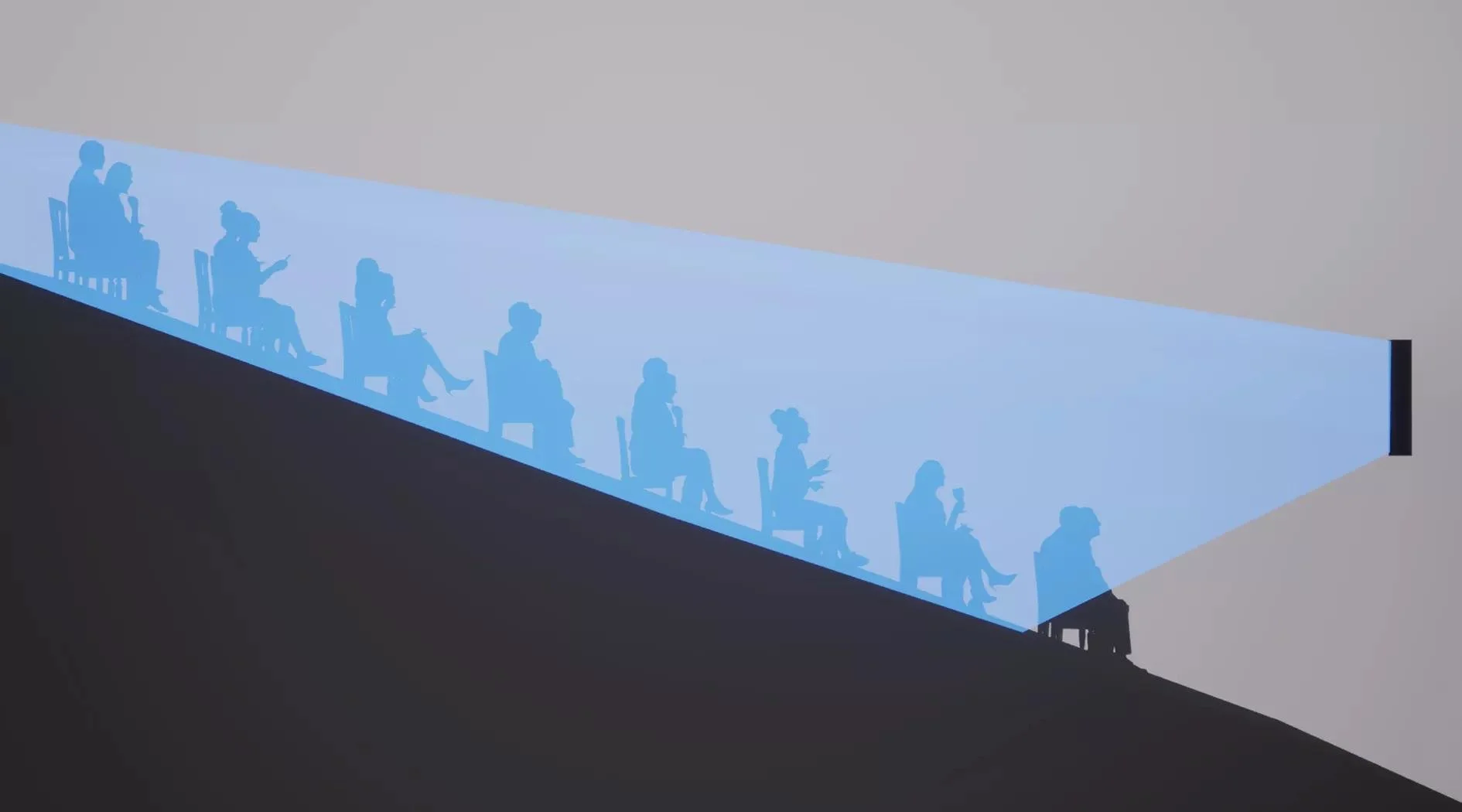

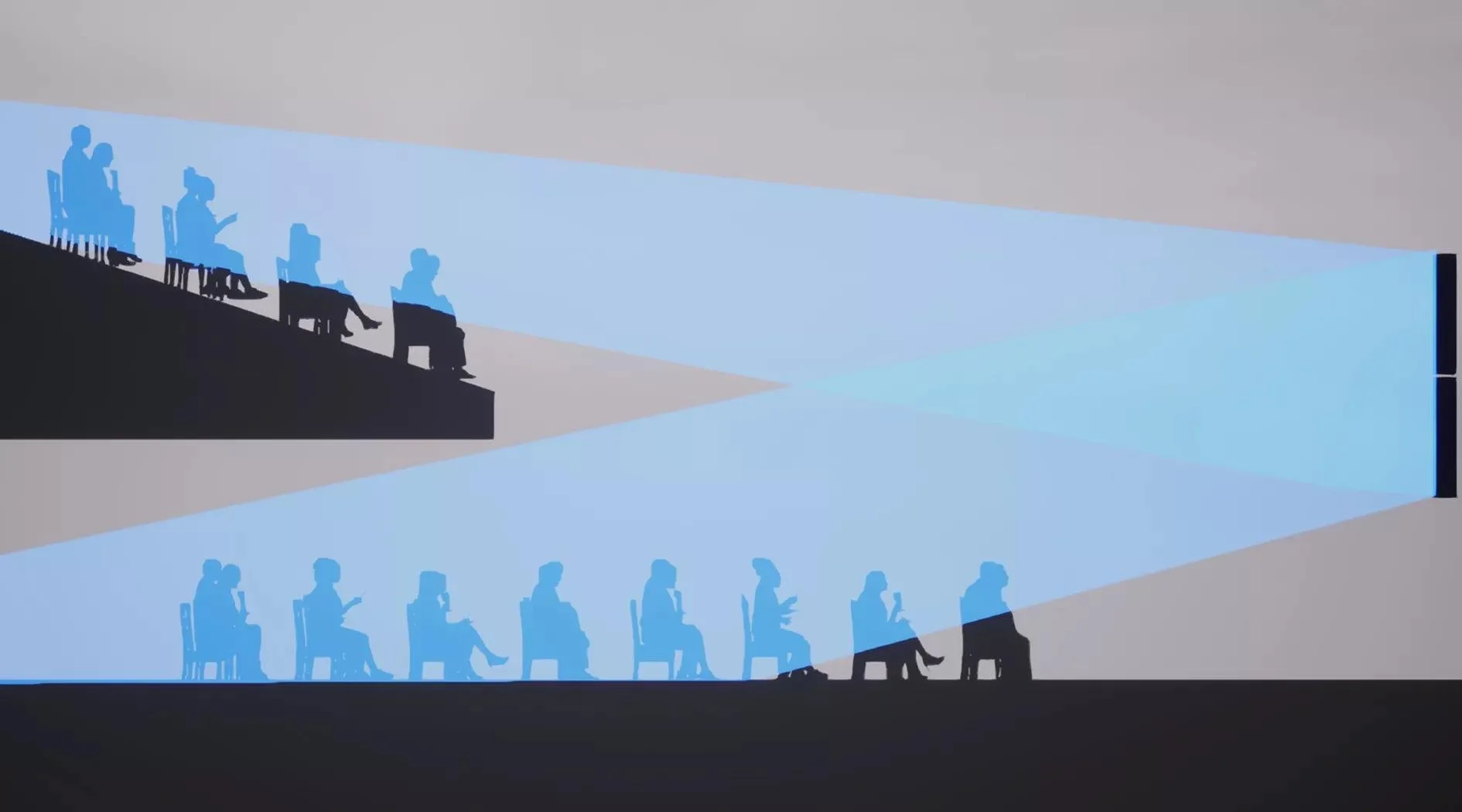

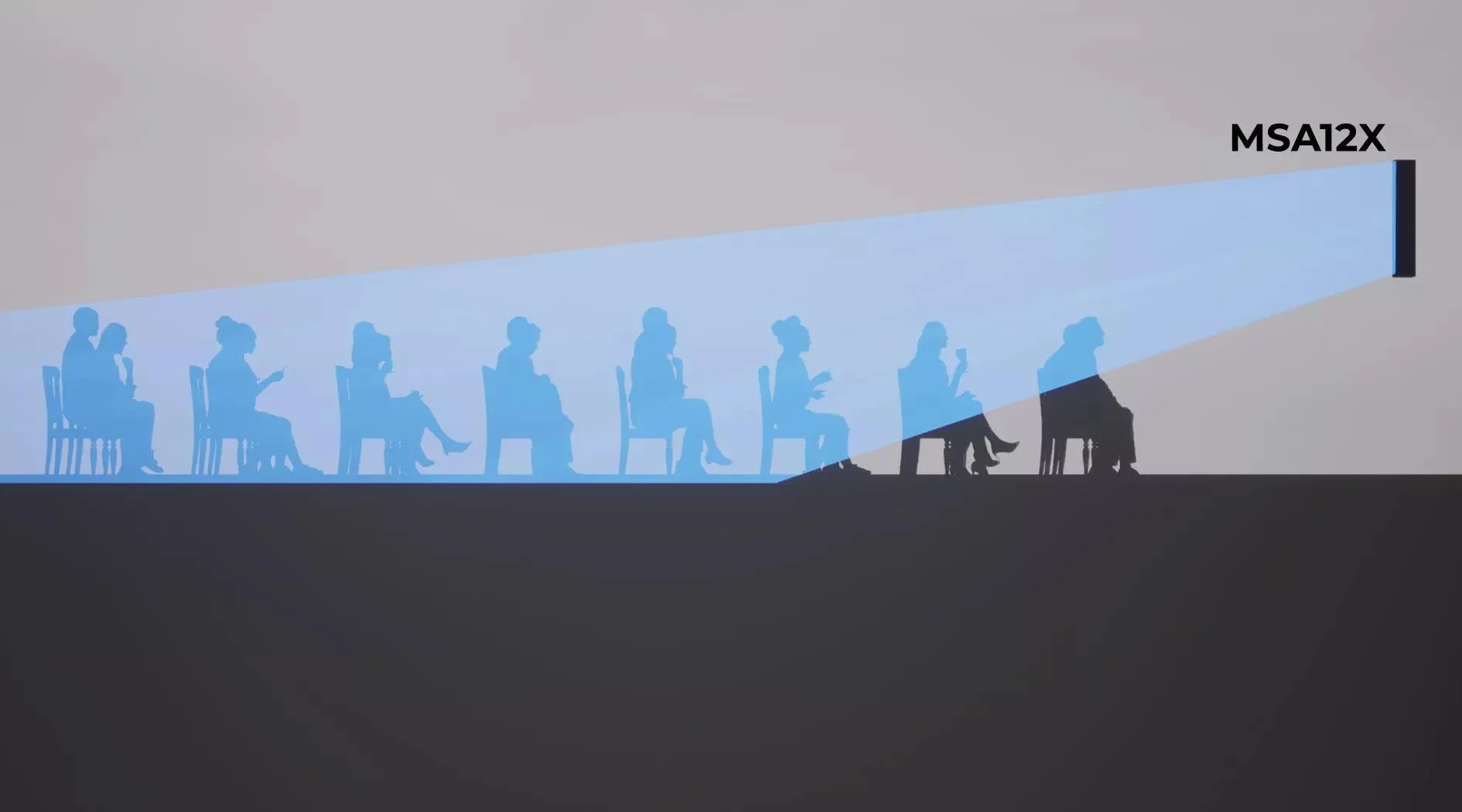

The beam pattern can be selected based on the room layout and optimized for flat or raked seating areas, depending on where it is mounted. Additionally, the dual-beam capabilities allow for two vertical beams to be generated simultaneously, meaning a single loudspeaker can effectively cover both a main floor and a balcony without requiring additional speakers.
Scalable, Modular Design
Flexibility doesn’t stop at beam control. The MSA12X features a modular design that allows up to three units to be combined into a single, cohesive array.
This expanded configuration increases output, improves low-frequency control, and enhances overall coverage, making it suitable for larger or more complex venues. With a modular approach, the system can be scaled based on project requirements without redesigning the entire solution.
Whether it’s installed in a small lecture room or a multi-level theatre, the same platform can adapt to meet the requirements.
Integrated Processing and Networked Control
The MSA12X is built as a complete, self-contained solution. With 600 watts of onboard amplification (12 x 50 W) and integrated DSP, it handles beam steering, EQ, delay, and system protection internally reducing the need for external processing and simplifying system design.
Connectivity is equally streamlined. With built-in Dante® audio networking and integration with Bose ControlSpace, audio, control, and monitoring can all be managed over a single network connection. This reduces cabling while enabling centralized control across larger AV systems.
Where It Performs Best
The MSA12X is particularly effective in spaces where traditional loudspeakers struggle.
Think of environments where:
Speech gets lost in reverberant houses of worship
Announcements echo through transportation hubs
Lecture theatres suffer from uneven coverage
Corporate spaces balance acoustics with architectural constraints
Because the system can be mounted at various heights and still deliver precise coverage through beam steering, it offers far more placement flexibility. This is especially valuable in venues where speaker positioning is limited or visual impact needs to be minimal.
The Bose Professional MSA12X goes beyond conventional loudspeaker design. By combining precise beam steering, integrated processing, and scalable deployment, it gives system designers a higher level of control in spaces where clarity is often difficult to achieve.
The result is simple: clearer speech, more consistent coverage, and fewer compromises between performance and architecture.
For organizations looking to improve intelligibility and simplify their AV systems, the MSA12X offers a practical and highly adaptable solution. Get in touch to learn more about how we can improve your audio environment!
